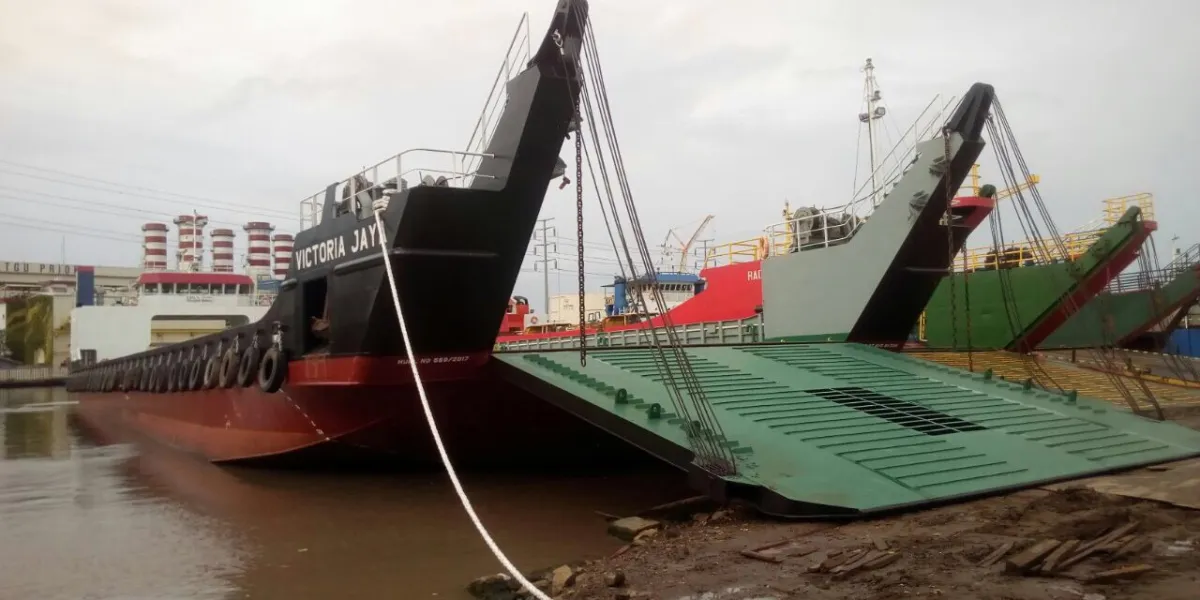

LCT VICTORIA JAYA (1800 DWT, Fitted with Container Carriage)

LCT VICTORIA JAYA (1800 DWT, Fitted with Container Carriage)

SHIP’S PARTICULARS
LCT. VICTORIA JAYA

Vessel Name : LCT. VICTORIA JAYA
Vessel Type : Landing Craft Tanks
Place / Year Built : Batam / 2017
Classification : BKi
“LANDING CRAFT Fitted for Container Carriage”
Length Over All : 69.95 Mtr
Length Main deck : 64.00 Mtr
Breadth : 15.86 Mtr
Depth : 3.66 Mtr
Draft (loaded mid) : 2.74 Mtr
Gross Tonnage / NT : 895 GT / 269 NT
Dead Weight : 1800 ton approx
Loading on deck : 1300 ton approx.
Deck Space Area : 54 x 15 Mtr + 3.5 x 10 Mtr + 7 x 5 Mtr
Total Clear Deck Space: 880 m2
Ramp Door (W x L) : 10.50 x 9 Mtr

Main Engine : 2 x 659 HP Yanmar Marine Engine Type 6 AYM-WST
Speed : 7 knots cruising
Fuel Oil Capacity : 150,000 M3
Fresh Water : 125,000 M3

Navigation & Communication :
VHF, SSB, GPS, RADAR, COMPASS, AIS, ECHOSOUNDER, TELP SATELITE
